MS type of Inter-Connector

The silver based MS-type of Inter-Connector consists of alternating conductive and non-conductive layers of silicone rubber.

The MS-type of Inter-Connector, often used for Chip-on-glass LCD’s, consists of alternating conductive and non-conductive layers of silicone rubber. Conductivity is provided by dispersed conductive silver particles in the conductive layers. Randomly positioning the Inter-Connector between contact pads and providing compression will realize a stable connection.

Furthermore, the MS-type is used as base of a wide range of special custom designs of Inter-Connectors with additional molding frames or holders for connecting microphones, speakers, coin-batteries, sensors and other electronic components, providing a module of component and Inter-Connector. Such Inter-Connector system provides a combination of electrical connection and mechanical or acoustic functions.

For higher current densities, a special lower resistance silver material is available.

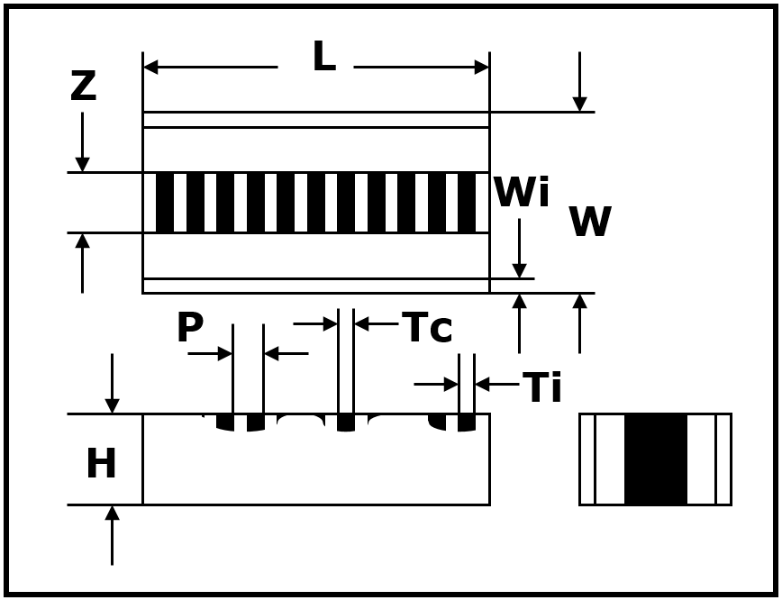

MS Type Dimensions

Full data in download
ParameterUnitValue
Pitchmm0.1
Lengthmm3 ~ 30
Heightmm0.5 ~ 10
Widthmm0.6 ~ 2.5
Core width mm 0.5 ~ 1.5
Width of isolation coatingmm0.01/ 0.05

MS Type Properties

Full data in download
ParameterUnitValue
Volume resistance Ω.m1*10^(-5)
Compression set%< 10
Isolation resistance (500 DC)> 10^3
Operating temperature range °C -25 ~ 85
