GB-E type of Inter-Connector

The GB-E-type of Inter-Connector, used for board to board and component to board connections. It is the base of a wide range of custom designs of Inter-connectors optionally co-molded with frames and holders.

The GB-E-type of Inter-Connector, used for board to board and component to board connections, consists of one or more rows of gold-plated brass wires in silicone rubber. Randomly positioning the Inter-Connector between contact pads and providing compression will realize a stable, low resistance connection.

Furthermore, the GB-E-type is used as base of a wide range of special custom designs of Inter-Connectors with additional molding frames or holders for connecting microphone, speaker, coin-batteries, sensors and other electronic components, providing a module of component and Inter-Connector. Such Inter-Connector system provides a combination of electrical connection and mechanical or acoustic functions.

For harsh environments, an alternative type of conductive wire can be used, based on Nikkel-Titanium, to provide extra contact pressure and eliminate negative effects of vibrations and mechanical shock.

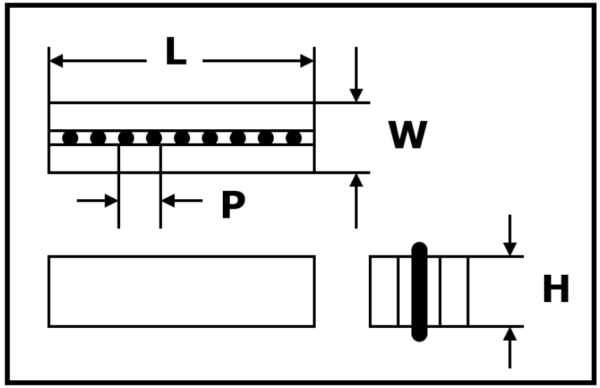

GB-E Type Dimensions

Full data in download
ParameterUnitValue
Pitchmm0.05/ 0.1/ 0.2
Lengthmm2 ~ 250
Heightmm1 ~ 20
Widthmm1 ~ 4
Filament diameter µm30/ 40

GB-E Type Properties

Full data in download
ParameterUnitValue
Contact resistance Ω ≤ 0.1
Current carrying capacitymA/wire 50
Isolation resistance (500V DC) > 10^3
Operating temperature range °C -25 ~ 85
